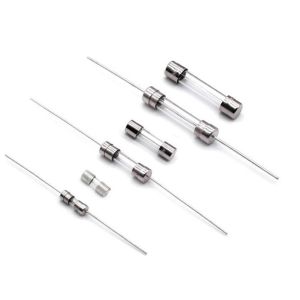

3.6x10mm Slow Blow Glass Tube Fuses 0.5A 0.63A 0.75A 0.8A 1A 1.25A 1.5A 1.6A 2A 3A 3.15A 4A 5A 6A 6.3A 7A 8A 10A 250V

Brand Name : CNAMPFORT

Model Number : STP

Certification : UL,cUL

Place of Origin : CHINA

MOQ : 5000

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100kkpcs per month

Delivery Time : 1-2 Weeks

Packaging Details : Bulk,500pcs per bag,20000pcs per carton,12KG/Carton,36*27*26cm

Name : Glass Tube Fuse

Size : 3.6x10mm

Standard : UL248-1/-14

Rated Current : 0.16A~16A

Voltage Ratings : 125V/250V

Breaking Capacity : 50A at 125V/250V AC

100% * In : 4 hours Min

200% * In : 60 sec Max)

Contact Now

3.6x10mm Slow Blow Glass Tube Fuses 0.5A 0.63A 0.75A 0.8A 1A 1.25A 1.5A 1.6A 2A 3A 3.15A 4A 5A 6A 6.3A 7A 8A 10A 250V 125V

3.6x10mm Slow Blow Glass Tube Fuses 0.5A 0.63A 0.75A 0.8A 1A 1.25A 1.5A 1.6A 2A 3A 3.15A 4A 5A 6A 6.3A 7A 8A 10A 250V

3.6x10mm Slow Blow Glass Tube Fuses 0.5A 0.63A 0.75A 0.8A 1A 1.25A 1.5A 1.6A 2A 3A 3.15A 4A 5A 6A 6.3A 7A 8A 10A 250V

Mainly used in lighting, power adapters, LED drive power supplies, power supply equipment, small appliances and control panels, etc.

3.6x10mm Slow Blow Glass Tube Fuses 0.5A 0.63A 0.75A 0.8A 1A 1.25A 1.5A 1.6A 2A 3A 3.15A 4A 5A 6A 6.3A 7A 8A 10A 250V

Time - current features:Time-Lag (T)

Breaking Capacity: 35Aor10In@250VAC, 50A@125/250VAC

Standard:UL248-14

Approvals: cURus,UR

Materials:shell-glass tube, metal cap-nickel-plated brass, lead cap-nickel-plated cap, tin-plated copper wire

Operating Temperature:-55℃ to +125℃

Soldering Parameters:260℃.≤10 sec (Wave Soldering),350℃.≤2 sec (Hand Soldering) Soldering Peak:260℃. 10 sec.,280℃. 5 sec. Storage Conditions:+10℃ to +60℃ Relative humidity:≤75% yearly average Without dew, maximum 30 days at 95%

Designed to UL/CSA 248 Standard.

Slo-Blo, glass body fuse in a compact package.

This space saving fuse is ideally suited for lighting, power supply, and adapter applications.

3.6x10mm Slow Blow Glass Tube Fuses 0.5A 0.63A 0.75A 0.8A 1A 1.25A 1.5A 1.6A 2A 3A 3.15A 4A 5A 6A 6.3A 7A 8A 10A 250V

3.6x10mm Slow Blow Glass Tube Fuses 0.5A 0.63A 0.75A 0.8A 1A 1.25A 1.5A 1.6A 2A 3A 3.15A 4A 5A 6A 6.3A 7A 8A 10A 250V

3.6x10mm Slow Blow Glass Tube Fuses 0.5A 0.63A 0.75A 0.8A 1A 1.25A 1.5A 1.6A 2A 3A 3.15A 4A 5A 6A 6.3A 7A 8A 10A 250V

Glass Tube Fuse
Series Size Voltage Current range Blow Type
STP 3.6x10mm 125V/250V 250mA ~ 24A Slow Blow
SFP 3.6x10mm 125V/250V 250mA ~ 24A Fast Blow
TBP 3.6x10mm 125V/250V 250mA ~ 24A Slow Blow
FBP 3.6x10mm 125V/250V 250mA ~ 24A Fast Blow
STC 5x20mm 125V/250V 250mA ~ 24A Slow Blow
SFC 5x20mm 125V/250V 250mA ~ 24A Fast Acting
TBC 5x20mm 125V/250V 250mA ~ 24A Slow Blow
FBC 5x20mm 125V/250V 250mA ~ 24A Fast Acting
MTC 6x30mm 125V/250V 100mA ~ 50A Slow Blow
MFC 6x30mm 125V/250V 100mA ~ 50A Fast Acting
Ceramic Tube Fuse
PTU 3.6x10mm 125V/250V 160mA ~ 6A Slow Blow
PFU 3.6x10mm 125V/250V 160mA ~ 6A Fast Blow
HTP 3.6x10mm 125V/250V 6.3A ~ 15A Slow Blow
HFP 3.6x10mm 125V/250V 6.3A ~ 15A Slow Blow
TBP 3.6x10mm 125V/250V 250mA ~ 24A Slow Blow
FBP 3.6x10mm 125V/250V 250mA ~ 24A Fast Blow
BTC 5x20mm 125V/250V 200mA ~ 10A Slow Blow
BFC 5x20mm 125V/250V 200mA ~ 10A Fast Acting
BMT 6x30mm 250V 100mA ~ 50A Time Lag
BMF 6x30mm 250V 100mA ~ 50A Fast Acting
5.250.T 5x20mm 250V 0.1A ~ 30A Time Lag
5.250.F 5x20mm 250V 0.1A ~ 30A Fast Acting
6.250.T 6x30mm 250V 100mA ~ 50A Time Lag
6.250.F 6x30mm 250V 100mA ~ 50A Fast Acting
